Description

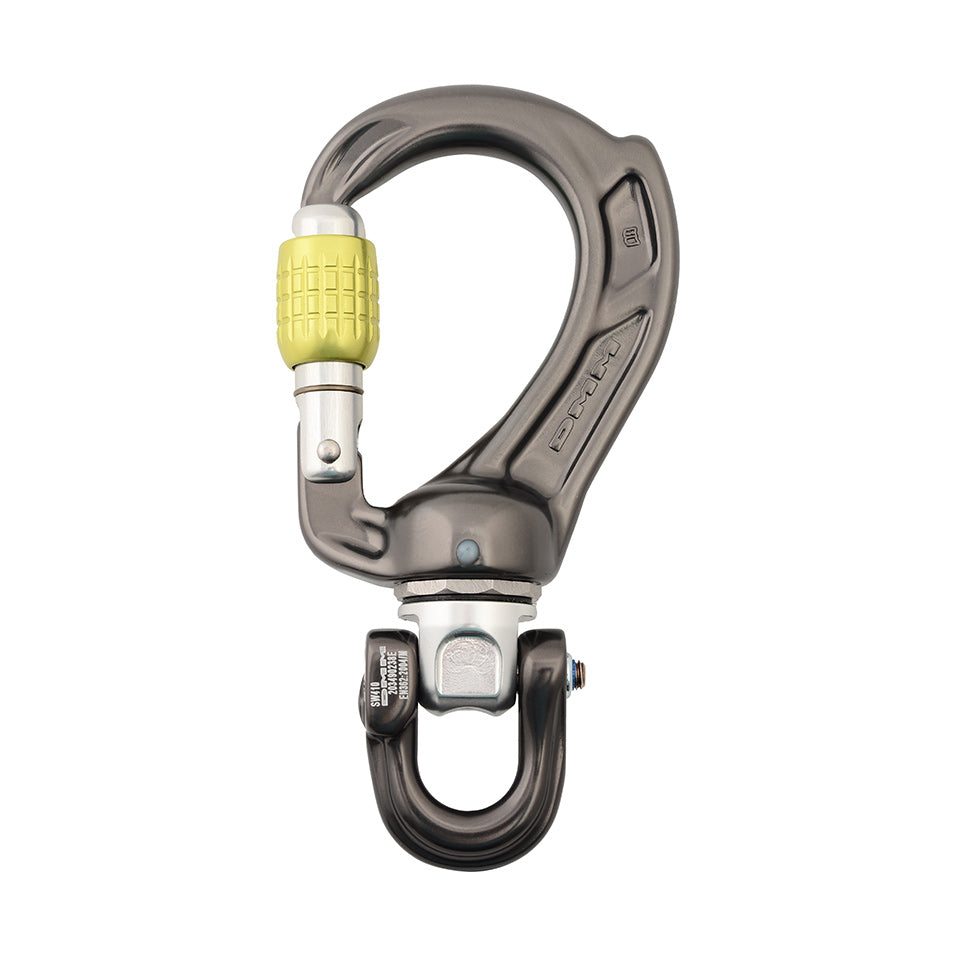

The Director Swivel Boss is a low-profile termination connector with an integrated swivel, engineered to ensure loading occurs along its primary strength axis. Optimised for lanyard use, it offers an excellent strength-to-weight ratio, smooth handling, and helps keep overall system length to a minimum.

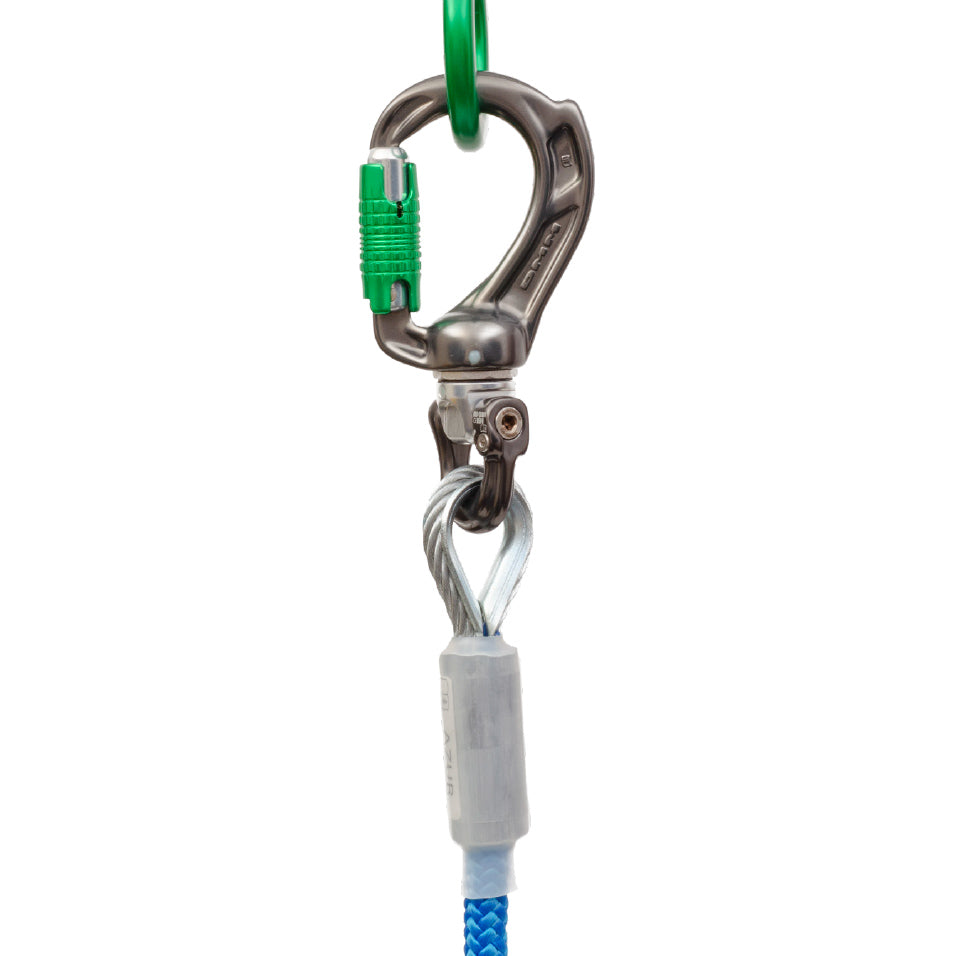

Featuring a textile-friendly, configurable attachment eye, an ultra-short gate, a broad and smoothly contoured load path, and a wide gate opening, the Director Swivel Boss is designed for flexible integration. It can be retrofitted to pre-stitched or swaged lanyard assemblies, or paired with DMM Linkits to create ultra-short, connectable systems. When combined with the DMM Director Yoke, it delivers a highly effective swivelling and pivoting twin-connector solution.

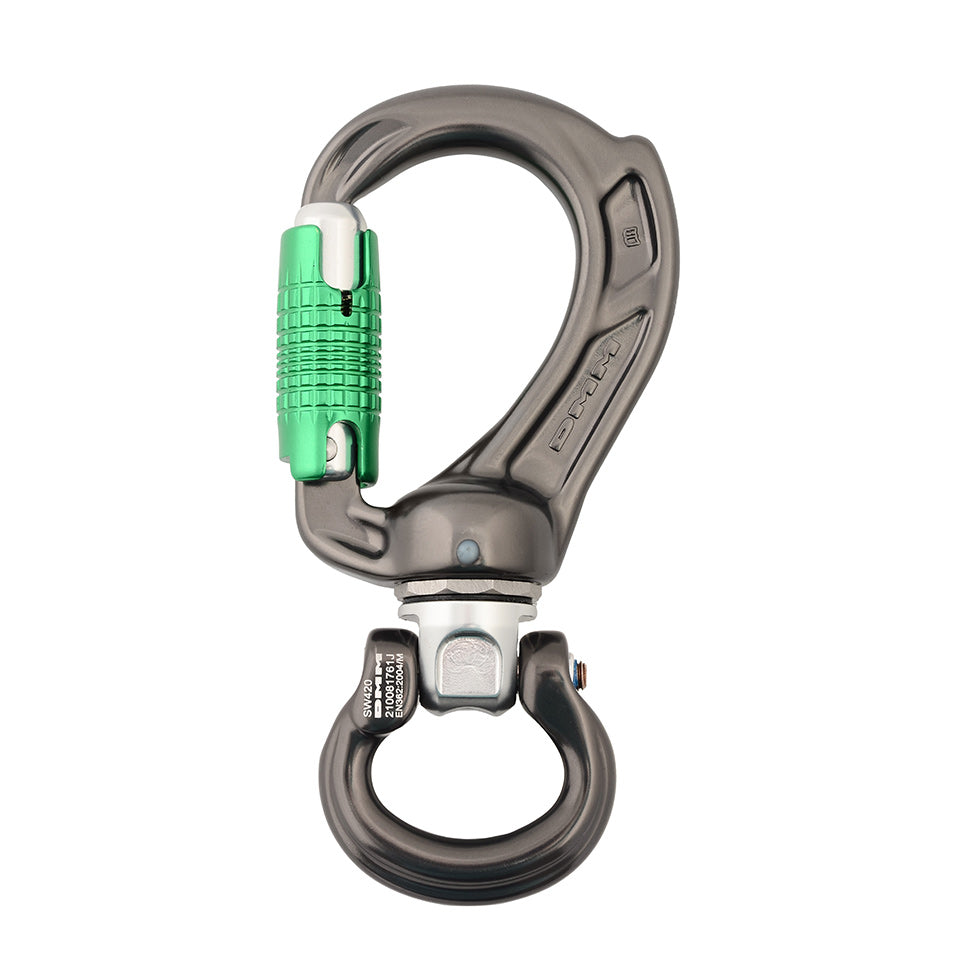

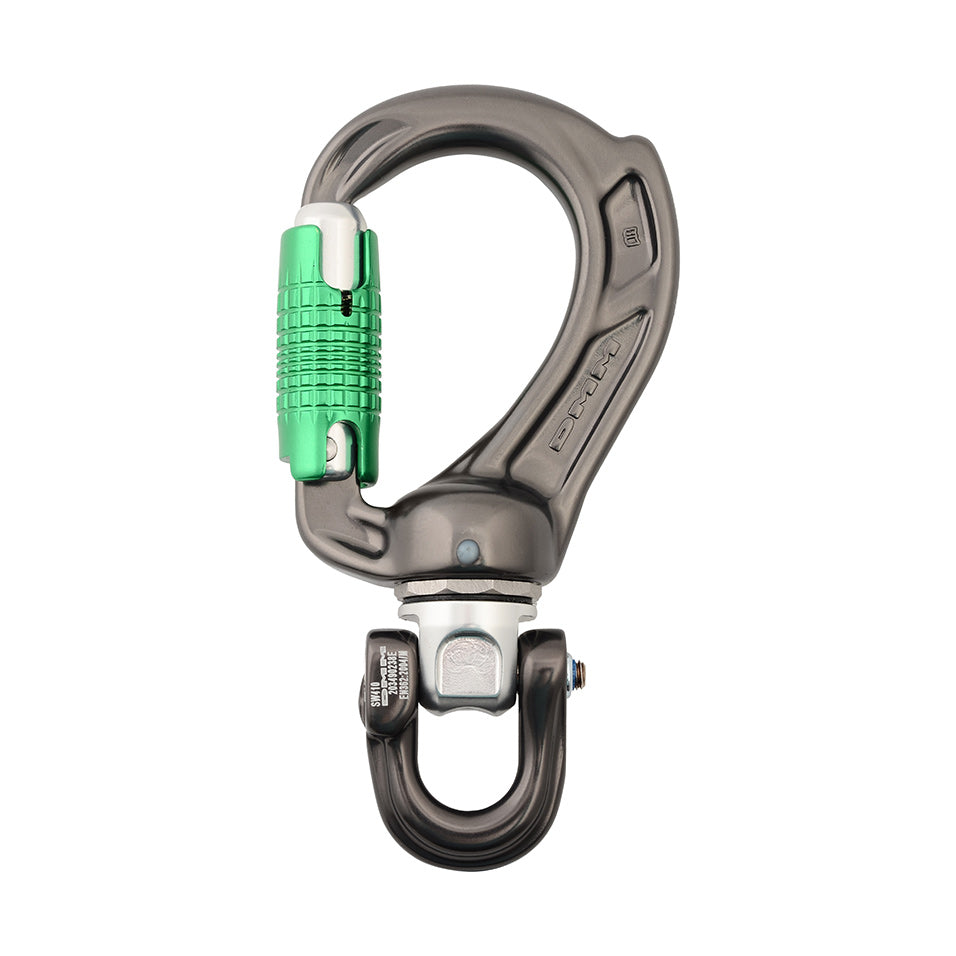

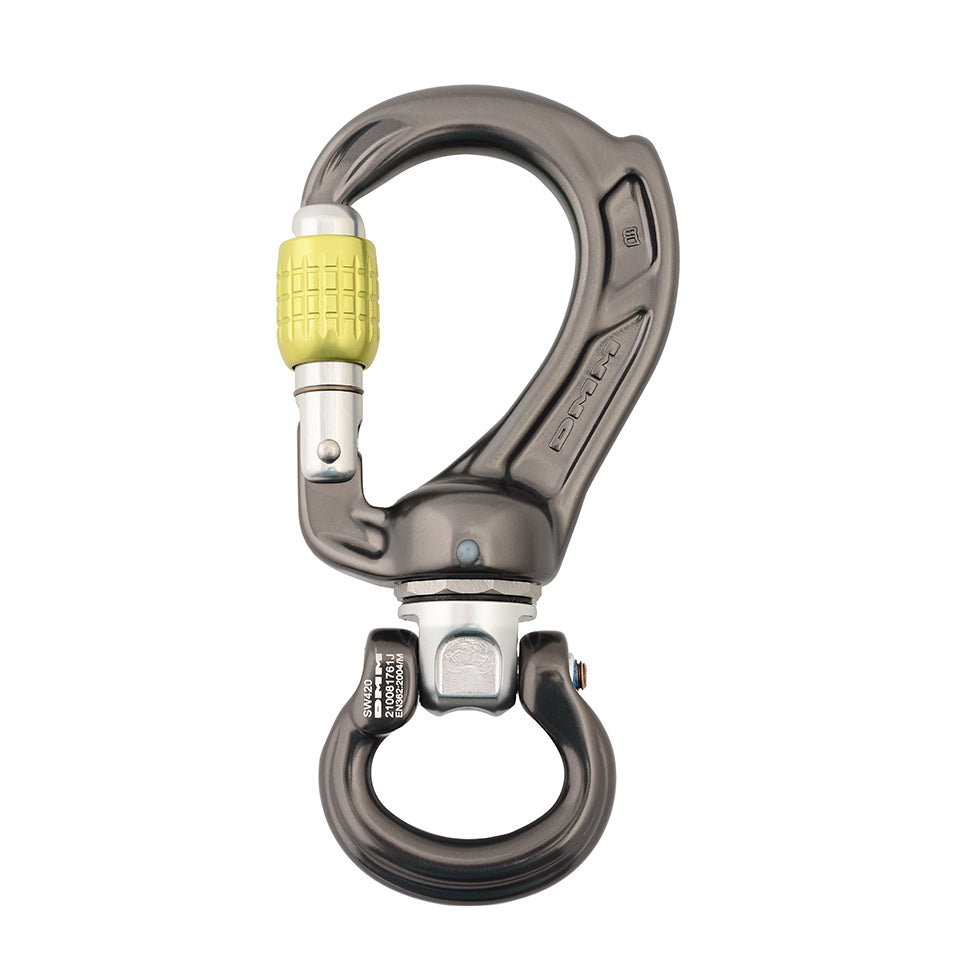

Shackle options include D or Bow profiles, allowing selection to suit specific attachment and connection requirements.
- Compact, lightweight and versatile.
- Designed to ensure major axis loading.
- "Rhino horn" ensures device remains in loading area.
- Incorporates DMM's shortest gate.
- Low overall length well suited to restricted height scenarios.
- Compatible with existing range of DMM Linkit lightweight rigging components.
- Patented features.
- Hot forged and CNC machined.
Specifications
- Dimensions: 64 x 130mm
- Weight: 98-105g
- MBS (Major Axis): 26kN
- MBS (Minor Axis): N/A
- MBS (Gate Open): 9kN
- Gate Opening: 17mm (Screwgate), 16mm (Locksafe)
- Certification: EN12275:2013 T, EN362:2004 T
