Description

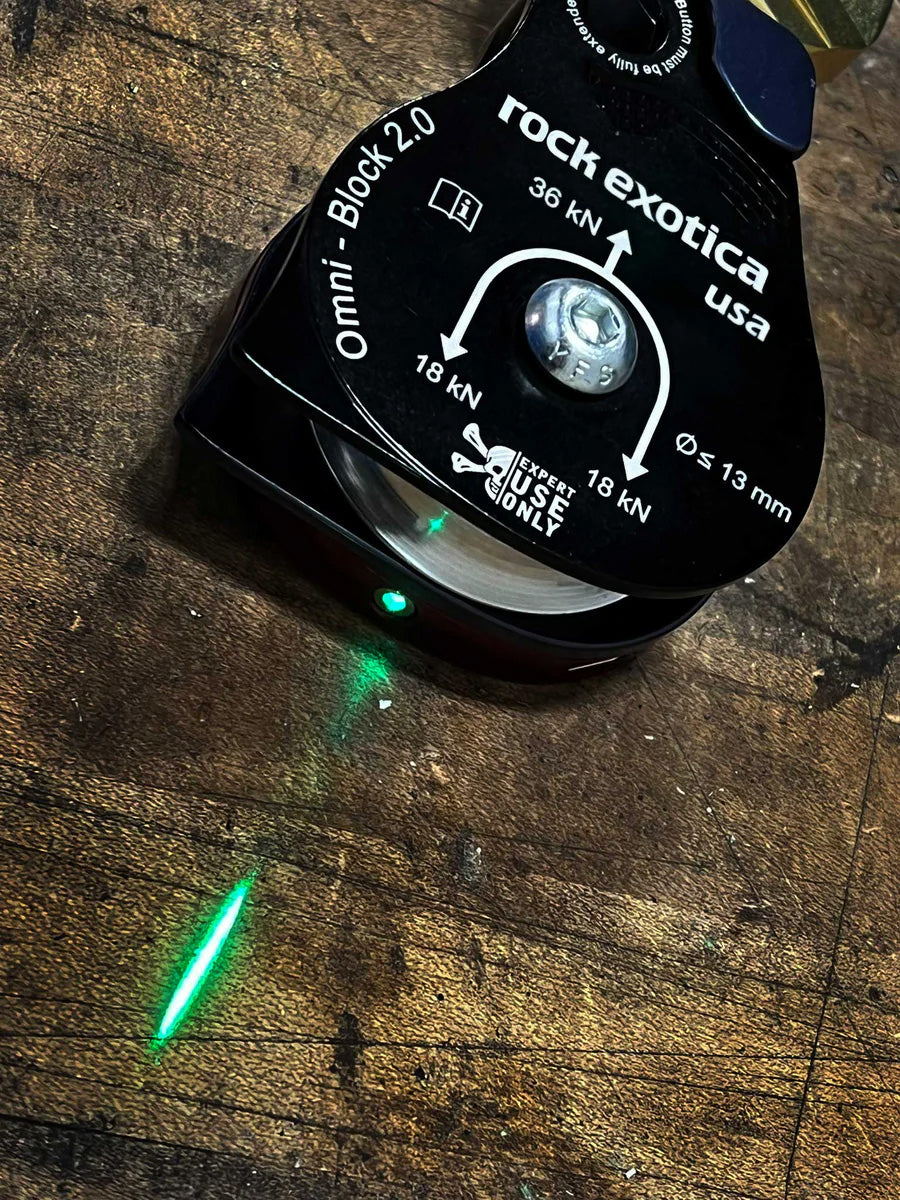

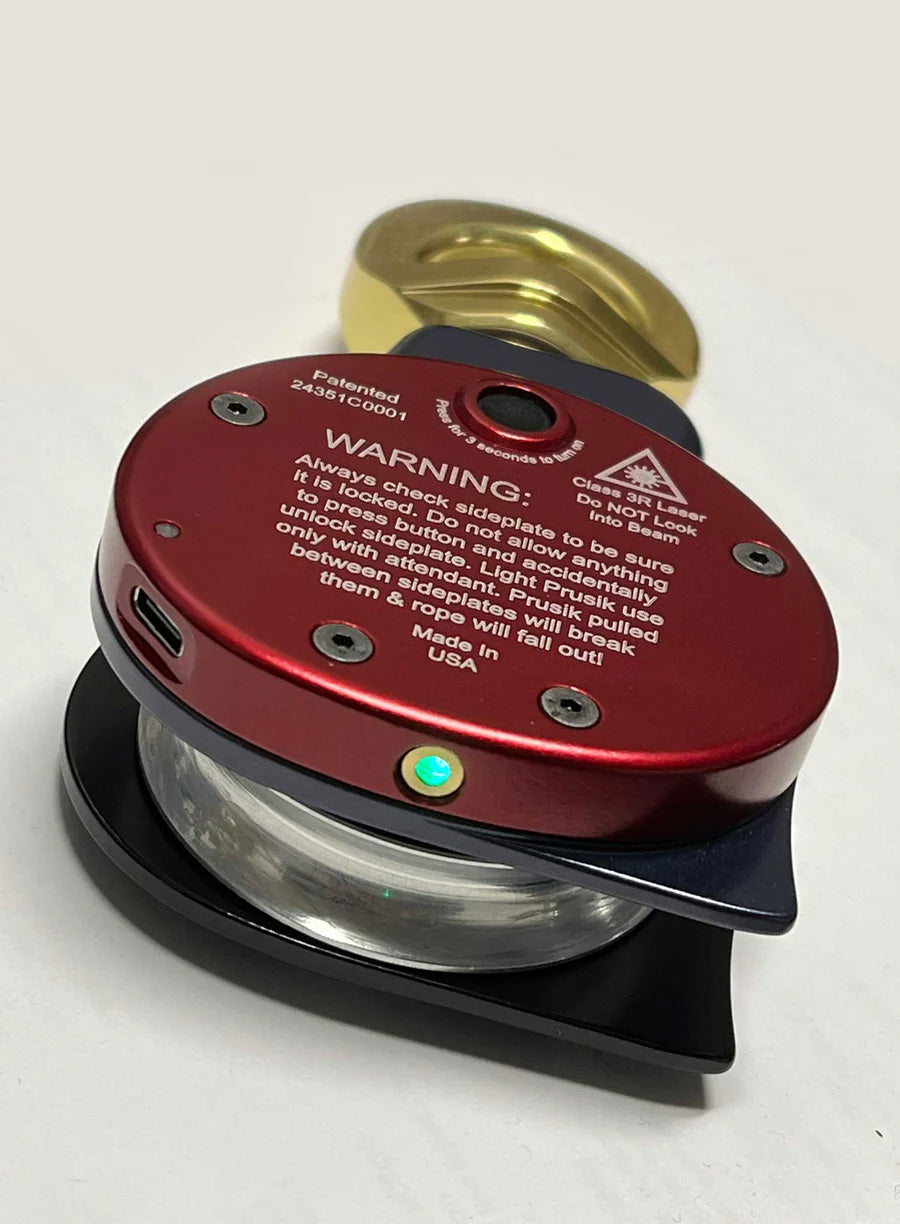

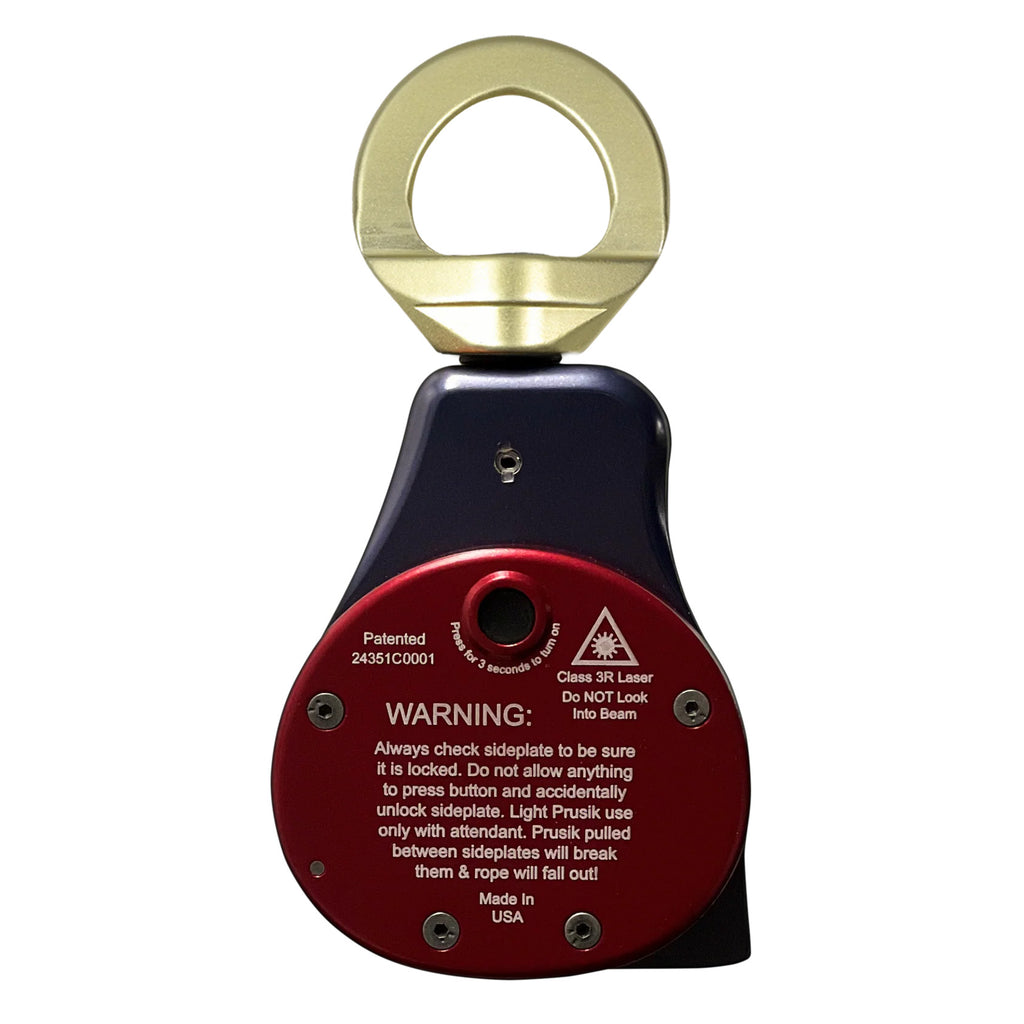

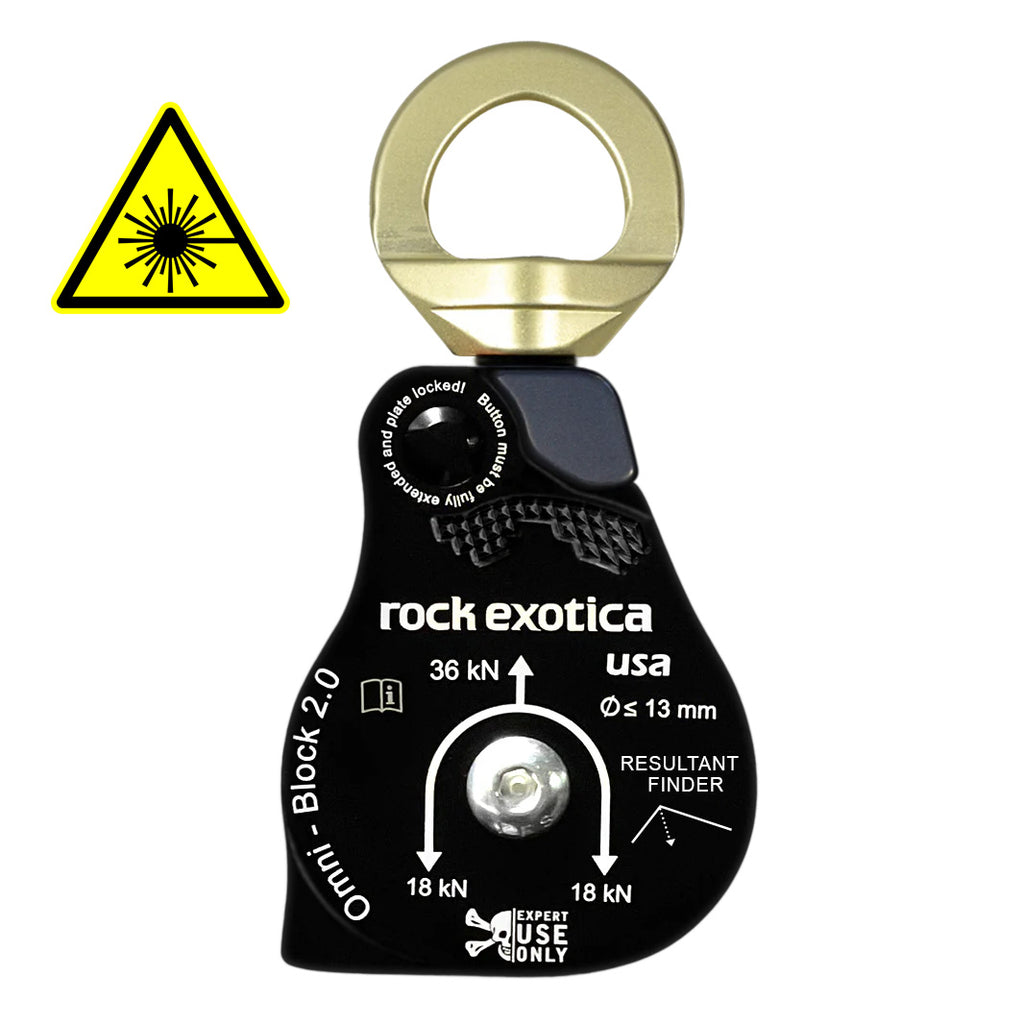

The Omni Laser Resultant Finder (LRF) combines a 2.0" Omni Block with an integrated Class 3 green laser to visually project the resultant force direction of a single-pulley redirect, the midpoint direction of the rope's path through the block. Designed for both operational use and training environments, it helps technicians and riggers develop a clearer understanding of load direction and system geometry.

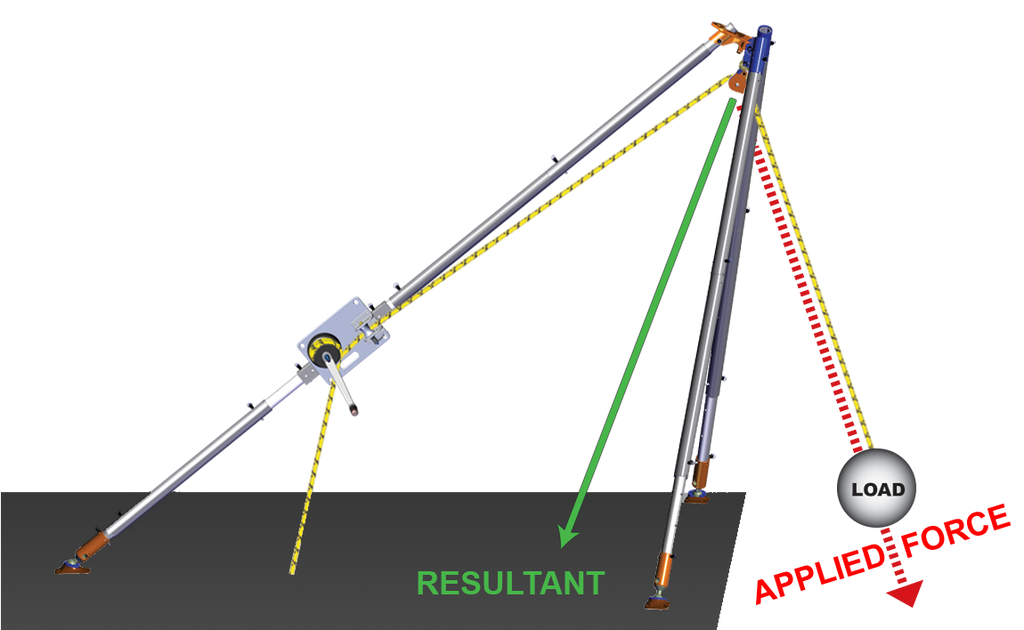

Important: The LRF is intended for single-pulley redirect applications. In multi-pulley systems, winch setups, or tie-off-on-leg configurations, the laser projection does not represent the actual direction of applied force and must not be interpreted as such. The LRF is a rigging aid, not a substitute for properly guying, anchoring, and backing up any artificial high directional.
Specifications
MBS: 36kN
WLL: 8 kN
Sheave Diameter: 2.0" (51 mm)
Max Rope: .5” (13mm)
Height: 5.8” (148 mm)
Width: 3.0” (76 mm)
Weight: 12.3oz (348gm)
Certification: N/A
