Description
The Pulley That Professionals Rely On—Now Refined

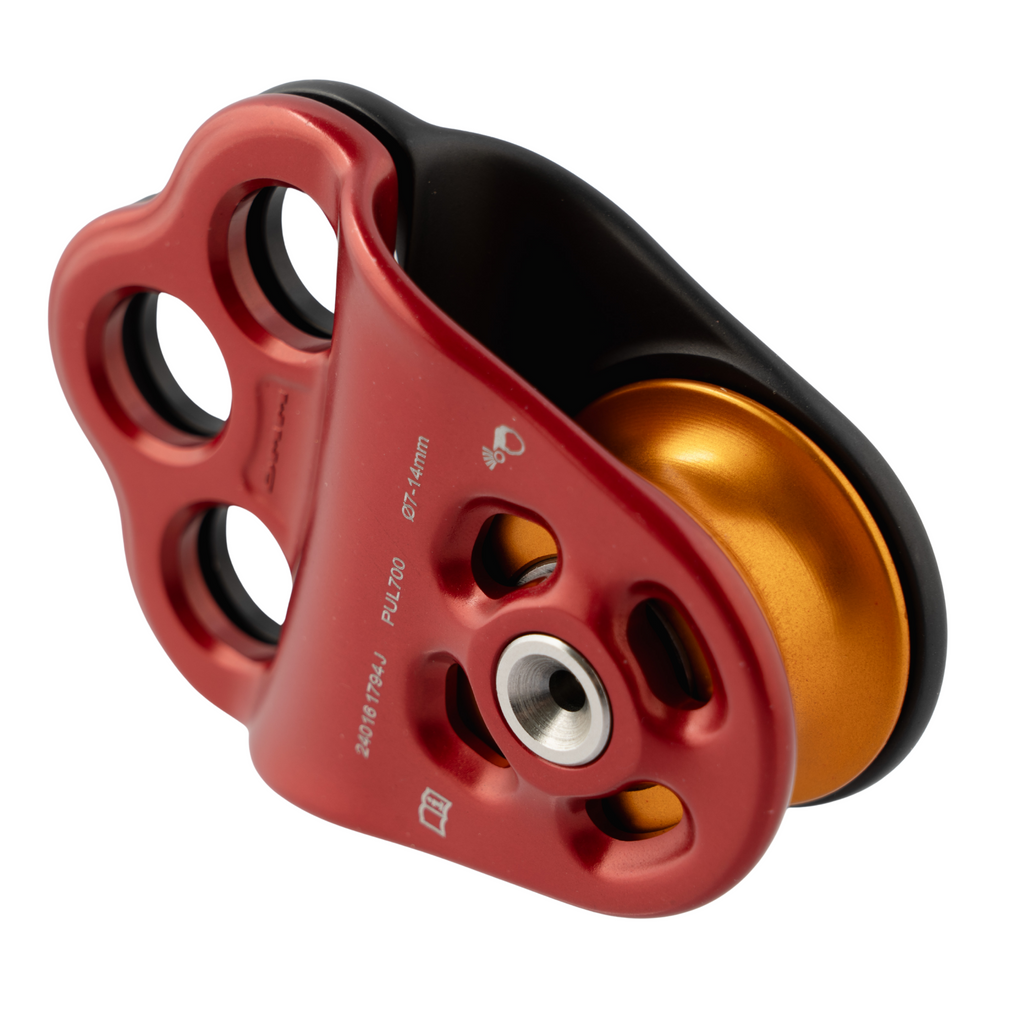

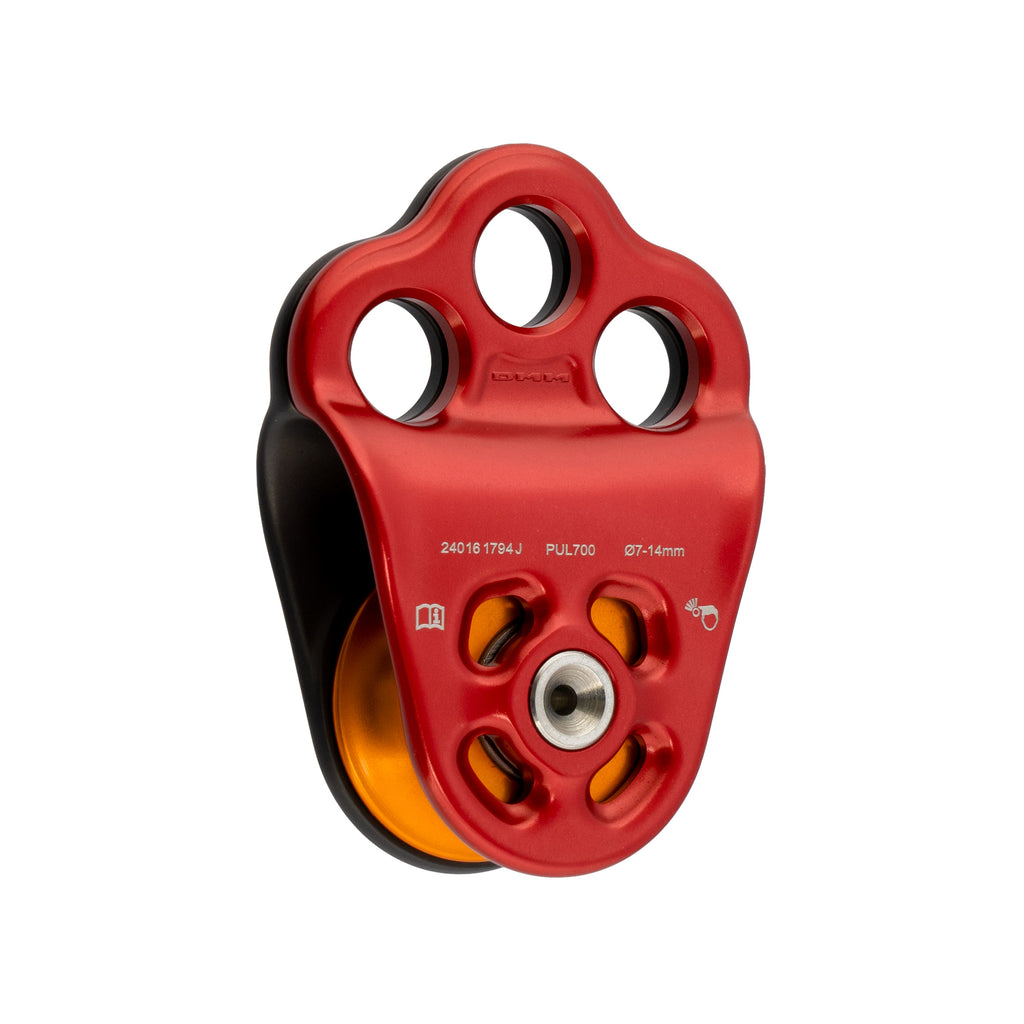

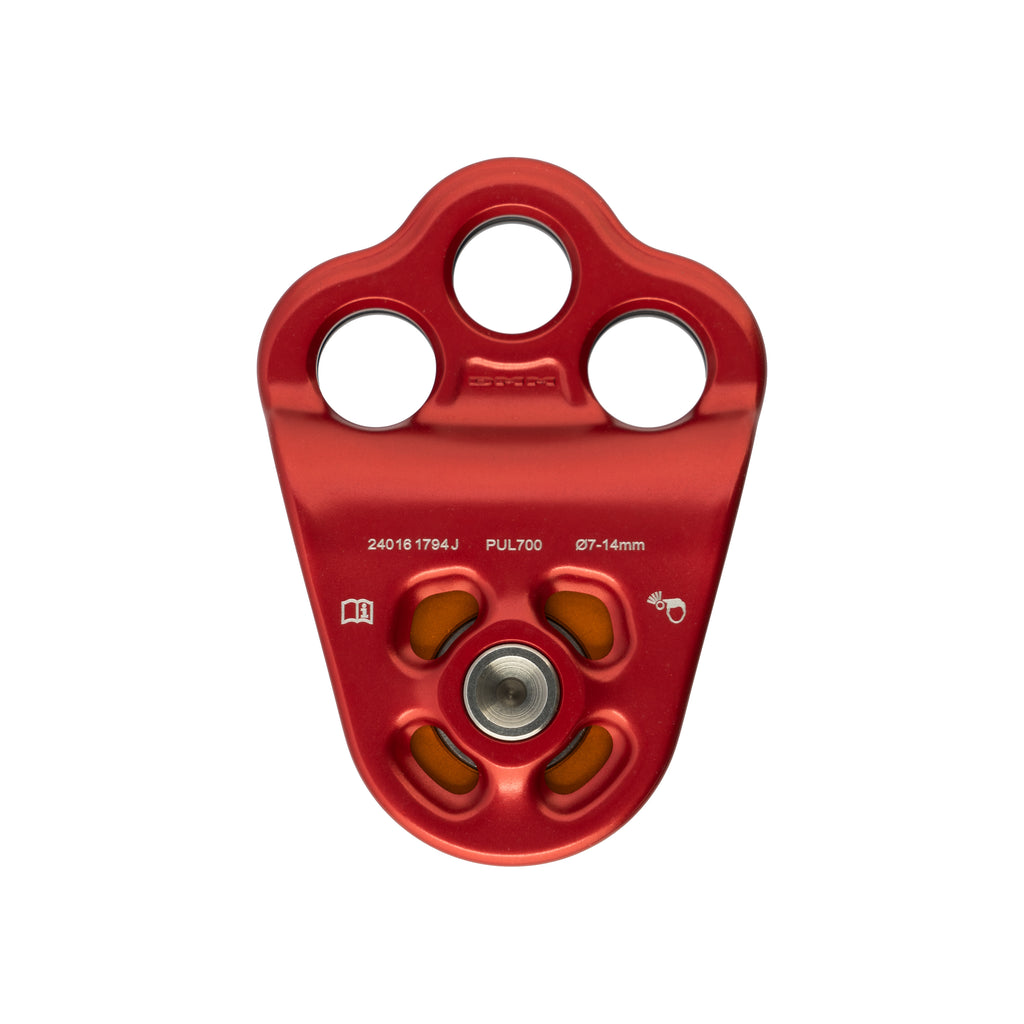

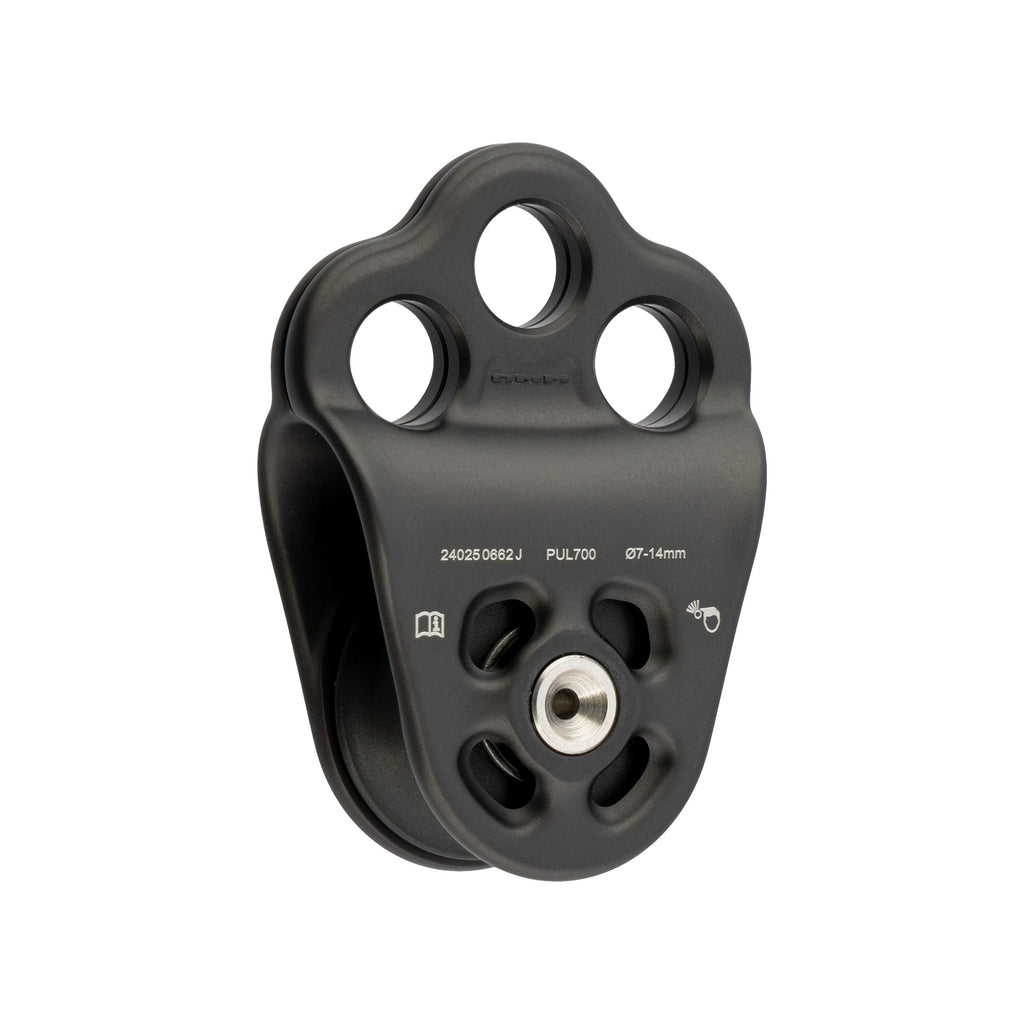

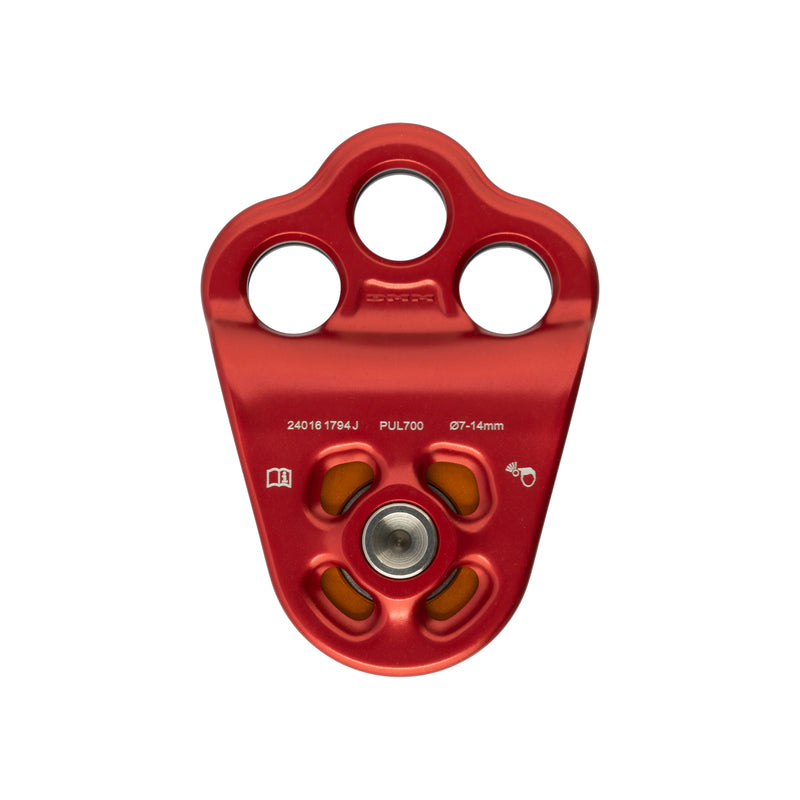

The Triple Attachment Pulley is a cornerstone of the well-known Hitch Climber System and remains a top choice for professionals working at height worldwide. Its three-hole design makes gear organisation and rigging straightforward, while also allowing for offset loading to cut down on rope-to-pulley friction.
The latest version comes with a series of upgrades designed to boost performance and ease of use. Sealed bearings now replace the previous bushings, giving the pulley greater efficiency. The redesigned upper profile features a broader U-shaped channel instead of the older V-shape, creating more space and letting rope feed more smoothly when used in a hitch climber setup.
Key Features
-
Sealed bearings deliver higher efficiency compared to bushings.
-
Straight side plates help tend hitches more effectively.
-
U-shaped upper channel offers increased rope clearance for smoother handling in climbing systems.
-
Integrated rigging plate simplifies organisation for single or multiple connections.
-
Flared fairleads keep the rope running smoothly and efficiently.
-
Wide compatibility with most carabiner shapes as well as rope and webbing connectors.
-
Optimised attachment holes reduce unwanted carabiner rotation.
-
Rounded hole edges allow direct textile connections, saving space, improving lift height, and reducing costs.
-
Side plate design accommodates autoblock knots whether the rope enters from the side or bottom.
-
Tamper-resistant build ensures long-lasting reliability.
Specifications
- PRODUCT CODE: PUL700RD
- MBS: 30kN
- WLL: 6kN
- DIMENSIONS: 94 x 68 x 33mm
- WEIGHT: 150g
- MAX ROPE DIAMETER: 14mm
- SHEAVE DIAMETER: 42mm
- CERTIFICATION: EN12278:2007
